C64 Maxi Umbau auf Raspberry Pi
Da das original Board echt nix kann, habe ich da einen Raspberry Pi 4 eingebaut. Mit ein paar Competition Pro USB ist das Feeling schon echt gut 😊
Leider habe ich noch keine Möglichkeit gefunden, die Tastatur außerhalb von VICE zu remappen.
Tastatur und seitliche USB-Ports mit dem Raspberry Pi nutzen
Die drei USB-Ports an der Seite sind sehr praktisch, die kann man sehr einfach weiternutzen:
Aus https://thec64community.online/thread/557/mod-convert-thec64-maxi-keyboard bzw. https://arananet-net.kinja.com/convirtiendo-el-teclado-de-un-c64-maxi-a-usb-1840718503

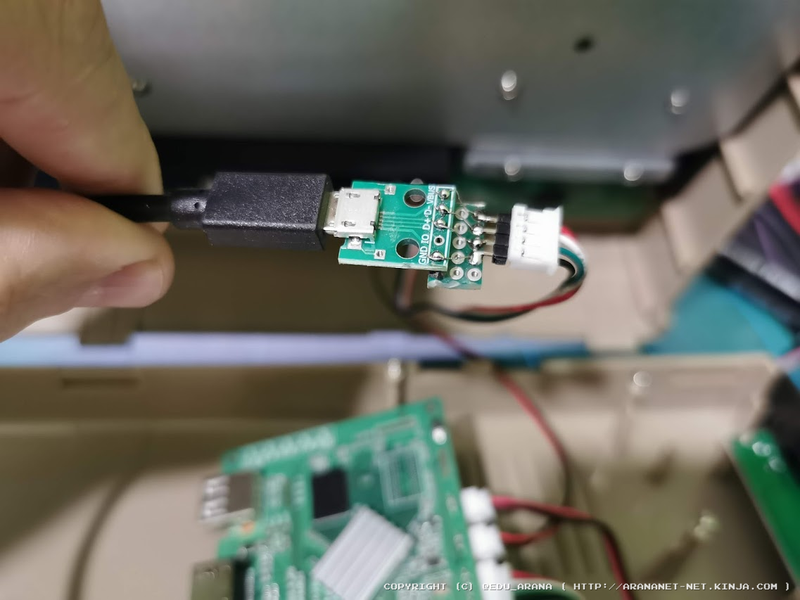

Mit einem kleinen USB-Breakout-Bord einfach die Tastatur an den Pi anschließen.
Power-LED via Batocera steuern
In /userdata/system folgende Datei custom.sh hinterlegen:
#!/bin/bash
# custom.sh - place to /userdata/system
# by cyperghost 23/11/19
#
if [[ $1 == start ]]; then
gpioset gpiochip0 17=1
fi
if [[ $1 == stop ]]; then
batocera-es-swissknife --emukill
fi
Die LED muss natürlich an GPIO 17 und GND angeschlossen sein. Die LED leuchtet, wenn Batocera komplett gebootet ist
Herunterfahren über seitlichen Schalter
Dazu muss "/etc/init.d/S92switch setup" aufgerufen werden und die Option "PIN56PUSH" ausgewählt werden. Nach einem Reboot funktioniert das dann entsprechend.
Der Schalter muss dazu natürlich auch an GPIO 5 und 6 angeschlossen sein 😊
Tastatur

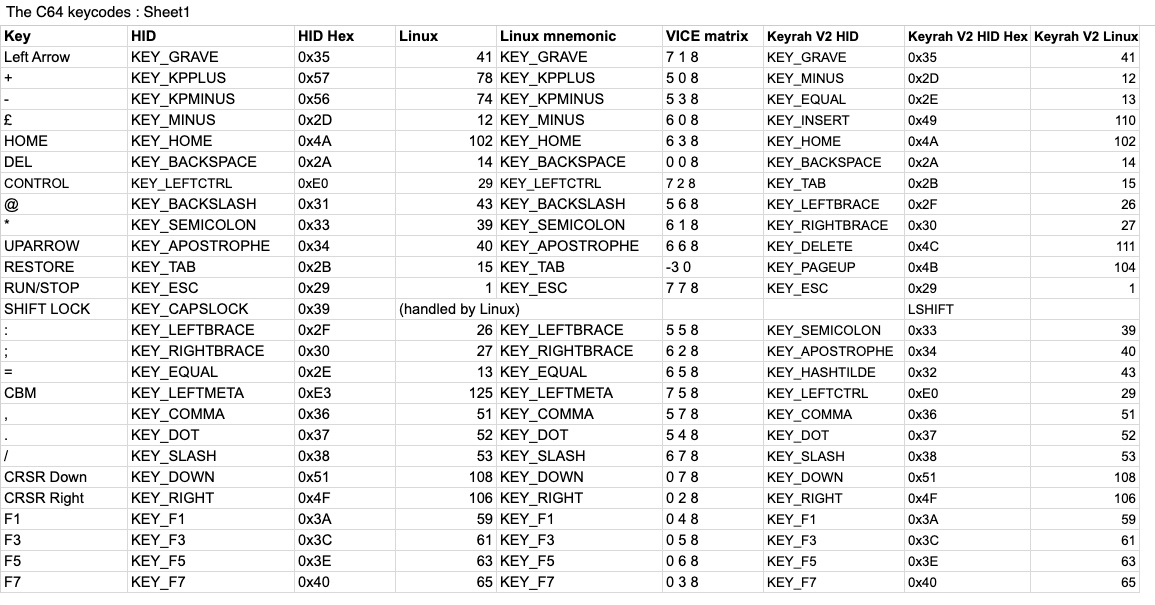

Einige Informationen über das Mapping der Tastatur gibt es hier:
https://www.bartneck.de/2020/04/03/keyboard-mapping-of-c64-vic-20-on-raspbian/
und hier:
https://thec64community.online/thread/688/c64-keyboard-mapping
Hier das Mapping der Sondertasten:
![[sdl-thec64-C64.vkm.txt]]
Mappings für VICE Batocera
Als Symbolic Mapping für VICE/Batocera (ablegen in userdata/bios/C64/sdl_sym.vkm):
# VICE keyboard mapping file for THEC64 and Retropie
# Edited by Javier Albarracin in Lima Peru
#
# A Keyboard map is read in as patch to the current map.
#
# File format:
# - comment lines start with '#'
# - keyword lines start with '!keyword'
# - normal line has 'keysym/scancode row column shiftflag'
#
# Keywords and their lines are:
# '!CLEAR' clear whole table
# '!INCLUDE filename' read file as mapping file
# '!LSHIFT row col' left shift keyboard row/column
# '!RSHIFT row col' right shift keyboard row/column
# '!VSHIFT shiftkey' virtual shift key (RSHIFT or LSHIFT)
# '!SHIFTL shiftkey' shift lock key (RSHIFT or LSHIFT)
# '!LCTRL row col' left control keyboard row/column
# '!VCTRL ctrlkey' virtual control key (LCTRL)
# '!LCBM row col' left CBM keyboard row/column
# '!VCBM cbmkey' virtual CBM key (LCBM)
# '!UNDEF keysym' remove keysym from table
#
# Shiftflag can have the values:
# 0 key is not shifted for this keysym/scancode
# 1 key is combined with shift for this keysym/scancode
# 2 key is left shift on emulated machine
# 4 key is right shift on emulated machine
# 8 key can be shifted or not with this keysym/scancode
# 16 deshift key for this keysym/scancode
# 32 another definition for this keysym/scancode follows
# 64 key is shift-lock on emulated machine
# 128 shift modifier required on host
# 256 key is used for an alternative keyboard mapping
# 512 alt-r (alt-gr) modifier required on host
# 1024 ctrl modifier required on host
# 2048 key is combined with cbm for this keysym/scancode
# 4096 key is combined with ctrl for this keysym/scancode
# 8192 key is (left) cbm on emulated machine
# 16384 key is (left) ctrl on emulated machine
#
# to migrate older keymaps and use the CBM and/or CTRL related features:
#
# - define !LCTRL, !VCTRL, !LCBM, !VCBM
# - add 'key is (left) cbm/ctrl on emulated machine' flags to
# all keys that map to the cbm or ctrl key respectively.
#
# after that the virtual cbm/ctrl flags and requiring host modifiers
# should work as expected. keep an eye on the error messages.
#
# Negative row values:
# 'keysym -1 n' joystick keymap A, direction n
# 'keysym -2 n' joystick keymap B, direction n
# 'keysym -3 0' first RESTORE key
# 'keysym -3 1' second RESTORE key
# 'keysym -4 0' 40/80 column key
# 'keysym -4 1' CAPS (ASCII/DIN) key
# 'keysym -5 n' joyport keypad, key n
#
# Joystick direction values:
# 0 Fire
# 1 South/West
# 2 South
# 3 South/East
# 4 West
# 5 East
# 6 North/West
# 7 North
# 8 North/East
#
# Joyport keypad key layout:
# --------------------------
# | 0 | 1 | 2 | 3 | 4 |
# --------------------------
# | 5 | 6 | 7 | 8 | 9 |
# --------------------------
# | 10 | 11 | 12 | 13 | 14 |
# --------------------------
# | 15 | 16 | 17 | 18 | 19 |
# --------------------------
#
# When a bigger spaced key is used,
# it uses the upper left most key value.
#
# Symbolic USER Mapping for RETROPIE "TheC64", US Layout, C64, SDL
# Credits: Javier Albarracin V. file modded from Keyrah/Vice/Libretro
# BE AWARE THAT LINUX KEYBOARD HAS TO BE IN "US AMERICAN" FOR THIS TO WORK
# this keyboard map applies for the "vice" setting for TheC64 Keyboard and
# maps all 64 keys, plus restore, to the respective emulated keys in VICE.
# This however leaves no key free to enter the menu - one way to work
# around this is to configure a joystick key to enter the menu.
#
# Don't forget to edit the file /opt/retropie/configs/c64/sdl-vicerc
# and include this lines to the end (without the starting "#"):
# KeymapUserSymFile="/opt/retropie/configs/c64/sdl-keyt64-C64.vkm"
# KeymapIndex=2
#
#
# +-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 0|Bit 1|Bit 2|Bit 3|Bit 4|Bit 5|Bit 6|Bit 7|
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 0| DEL |Retrn|C_L/R| F7 | F1 | F3 | F5 |C_U/D|
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 1| 3 # | W | A | 4 $ | Z | S | E | S_L |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 2| 5 % | R | D | 6 & | C | F | T | X |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 3| 7 ' | Y | G | 8 ( | B | H | U | V |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 4| 9 ) | I | J | 0 | M | K | O | N |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 5| + | P | L | - | . > | : [ | @ | , < |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 6|POUND| * | ; ] | HOME| S_R | = | A_UP| / ? |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
# |Bit 7| 1 ! |A_LFT| CTRL| 2 " |SPACE| C= | Q | R/S |
# +-----+-----+-----+-----+-----+-----+-----+-----+-----+
#
!CLEAR
!LSHIFT 1 7
!RSHIFT 6 4
!VSHIFT RSHIFT
!SHIFTL LSHIFT
!LCTRL 7 2
!VCTRL LCTRL
!LCBM 7 5
!VCBM LCBM
8 0 0 8 /* Del -> Del */
13 0 1 8 /* Return -> Return */
275 0 2 8 /* Right -> CRSR RIGHT */
276 0 2 1 /* Left -> CRSR LEFT */
288 0 3 8 /* F7 -> F7 */
289 0 3 1 /* F8 -> F8 */
282 0 4 8 /* F1 -> F1 */
283 0 4 1 /* F2 -> F2 */
284 0 5 8 /* F3 -> F3 */
285 0 5 1 /* F4 -> F4 */
286 0 6 8 /* F5 -> F5 */
287 0 6 1 /* F6 -> F6 */
273 0 7 1 /* CRSR UP -> CRSR UP */
274 0 7 8 /* CRSR DOWN -> CRSR DOWN */
51 1 0 8 /* 3 -> 3 */
52 1 3 8 /* 4 -> 4 */
304 1 7 2 /* Left Shift -> Left Shift */
301 1 7 64 /* Shift Lock -> Shift Lock */
53 2 0 8 /* 5 -> 5 */
54 2 3 8 /* 6 -> 6 */
55 3 0 8 /* 7 -> 7 */
56 3 3 8 /* 8 -> 8 */
57 4 0 8 /* 9 -> 9 */
48 4 3 8 /* 0 -> 0 */
270 5 0 8 /* + -> + */
269 5 3 8 /* - -> - */
46 5 4 8 /* . -> . */
91 5 5 8 /* : -> : */
92 5 6 8 /* @ -> @ */
44 5 7 8 /* , -> , */
45 6 0 8 /* Pound -> Pound */
59 6 1 8 /* * -> * */
93 6 2 8 /* ; -> ; */
278 6 3 8 /* CLR/HOME -> CLR/HOME */
303 6 4 4 /* Right Shift -> Right Shift */
61 6 5 8 /* = -> = */
39 6 6 8 /* Up Arrow -> Up Arrow */
47 6 7 8 /* / -> / */
49 7 0 8 /* 1 -> 1 */
96 7 1 8 /* Left Arrow -> Left Arrow */
306 7 2 8 /* Ctrl -> Ctrl */
50 7 3 8 /* 2 -> 2 */
32 7 4 8 /* Space -> Space */
310 7 5 8 /* TheC64 -> CBM */
27 7 7 8 /* Run/Stop -> Run/Stop */
97 1 2 8 /* A -> A */
98 3 4 8 /* B -> B */
99 2 4 8 /* C -> C */
100 2 2 8 /* D -> D */
101 1 6 8 /* E -> E */
102 2 5 8 /* F -> F */
103 3 2 8 /* G -> G */
104 3 5 8 /* H -> H */
105 4 1 8 /* I -> I */
106 4 2 8 /* J -> J */
107 4 5 8 /* K -> K */
108 5 2 8 /* L -> L */
109 4 4 8 /* M -> M */
110 4 7 8 /* N -> N */
111 4 6 8 /* O -> O */
112 5 1 8 /* P -> P */
113 7 6 8 /* Q -> Q */
114 2 1 8 /* R -> R */
115 1 5 8 /* S -> S */
116 2 6 8 /* T -> T */
117 3 6 8 /* U -> U */
118 3 7 8 /* V -> V */
119 1 1 8 /* W -> W */
120 2 7 8 /* X -> X */
121 3 1 8 /* Y -> Y */
122 1 4 8 /* Z -> Z */
#
# Restore key mappings
#
9 -3 0
#
# joyport attached keypad key mapping
#
300 -5 0
263 -5 1
264 -5 2
265 -5 3
267 -5 4
302 -5 5
260 -5 6
261 -5 7
Also Positional Mapping (ablegen in /userdata/bios/vice/C64/sdl_pos.vkm)
# BMC64 keyboard mapping file for TheC64 ('Maxi')
#
# A Keyboard map is read in as patch to the current map.
#
# File format:
# - comment lines start with '#'
# - keyword lines start with '!keyword'
# - normal line has 'keysym/scancode row column shiftflag'
#
# Keywords and their lines are:
# '!CLEAR' clear whole table
# '!INCLUDE filename' read file as mapping file
# '!LSHIFT row col' left shift keyboard row/column
# '!RSHIFT row col' right shift keyboard row/column
# '!VSHIFT shiftkey' virtual shift key (RSHIFT or LSHIFT)
# '!UNDEF keysym' remove keysym from table
#
# Shiftflag can have the values:
# 0 key is not shifted for this keysym/scancode
# 1 key is shifted for this keysym/scancode
# 2 left shift
# 4 right shift
# 8 key can be shifted or not with this keysym/scancode
# 16 deshift key for this keysym/scancode
# 32 another definition for this keysym/scancode follows
#
# Negative row values:
# 'keysym -1 n' joystick #1, direction n
# 'keysym -2 n' joystick #2, direction n
# 'keysym -3 0' first RESTORE key
# 'keysym -3 1' second RESTORE key
# 'keysym -4 0' 40/80 column key
# 'keysym -4 1' CAPS (ASCII/DIN) key
#
!CLEAR
!LSHIFT 1 7
!RSHIFT 6 4
!VSHIFT RSHIFT
Control_L 7 2 8 /* Ctrl */
Super_L 7 5 0 /* Commodore Key */
BackSpace 0 0 8
Down 0 7 8
Escape 7 7 8 /* RunStop */
F1 0 4 8
F2 0 4 1
F3 0 5 8
F4 0 5 1
F5 0 6 8
F6 0 6 1
F7 0 3 8
F8 0 3 1
Home 6 3 8 /* Clr */
Insert 0 0 16 /* Insert */
Left 0 2 1
Return 0 1 8
Right 0 2 8
Shift_L 1 7 2
Shift_R 6 4 4
Up 0 7 1
KP_Add 5 0 8 /* + */
KP_Subtract 5 3 8 /* - */
Apostrophe 6 6 8 /* Up Arrow */
LeftBracket 5 5 8 /* : -> : */
SemiColon 6 1 8 /* * -> * */
Comma 5 7 8 /* , -> , */
BackSlash 5 6 8 /* @ -> @ */
Pound 6 5 0 /* equal */
Equals 6 5 8 /* = -> = */
Period 5 4 8 /* . */
Dash 6 0 8 /* Pound */
SingleQuote 6 6 8 /* Up Arrow */
Slash 6 7 8 /* / -> / */
Space 7 4 8 /* space */
Insert 6 0 8 /* sterling */
RightBracket 6 2 8 /* ; -> ; */
BackQuote 7 1 0 /* arrowleft */
Del 6 6 8 /* arrowup */
0 4 3 8
1 7 0 8
2 7 3 8
3 1 0 8
4 1 3 8
5 2 0 8
6 2 3 8
7 3 0 8
8 3 3 8
9 4 0 8
a 1 2 8
b 3 4 8
c 2 4 8
d 2 2 8
e 1 6 8
f 2 5 8
g 3 2 8
h 3 5 8
i 4 1 8
j 4 2 8
k 4 5 8
l 5 2 8
m 4 4 8
n 4 7 8
o 4 6 8
p 5 1 8
q 7 6 8
r 2 1 8
s 1 5 8
t 2 6 8
u 3 6 8
v 3 7 8
w 1 1 8
x 2 7 8
y 3 1 8
z 1 4 8
# Restore key mappings
CapsLock -4 1
Tab -3 0
